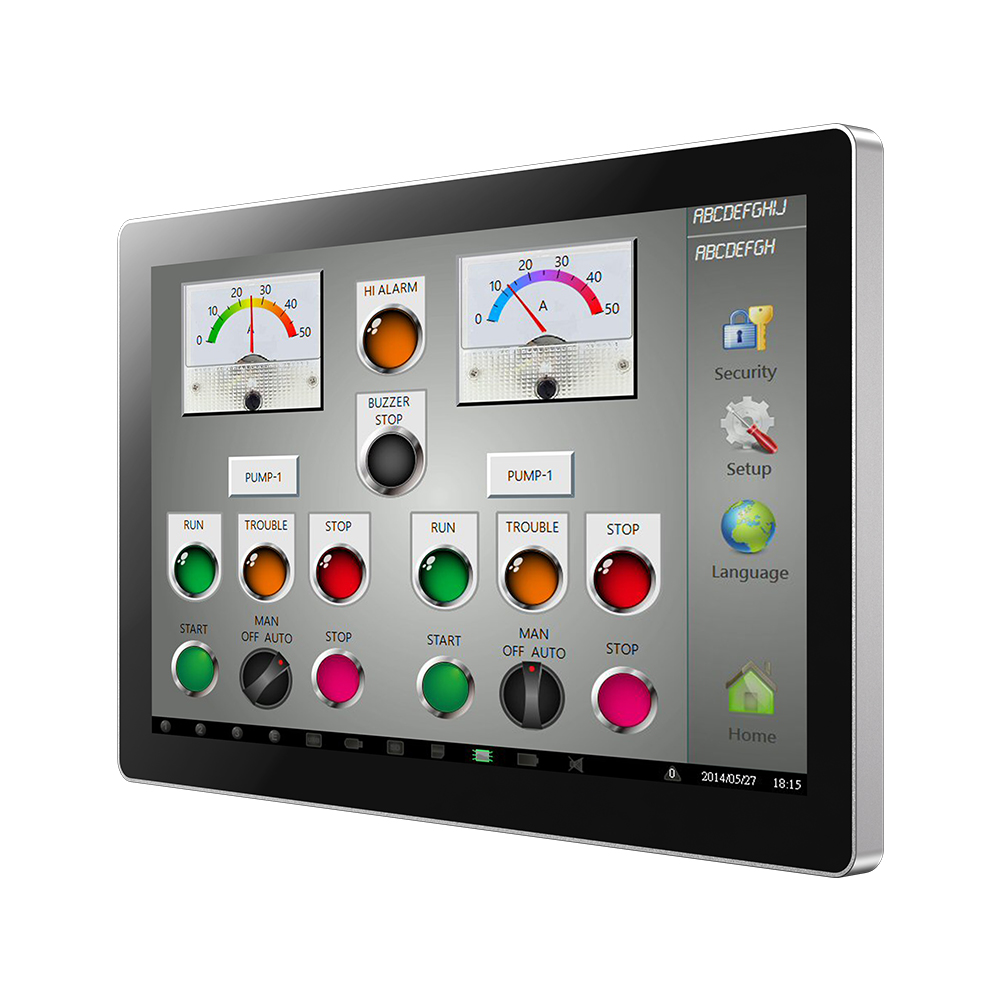

NPP-215P01-1

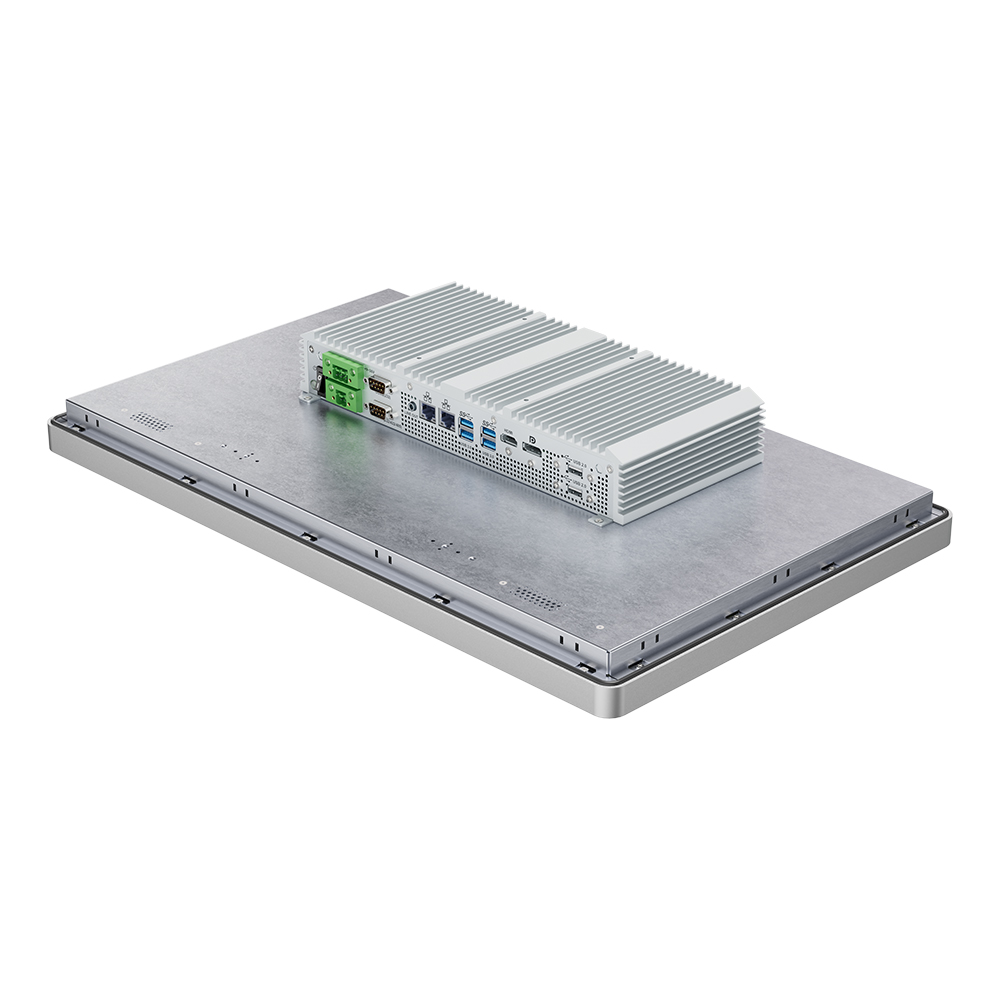

NPP-215P01-2

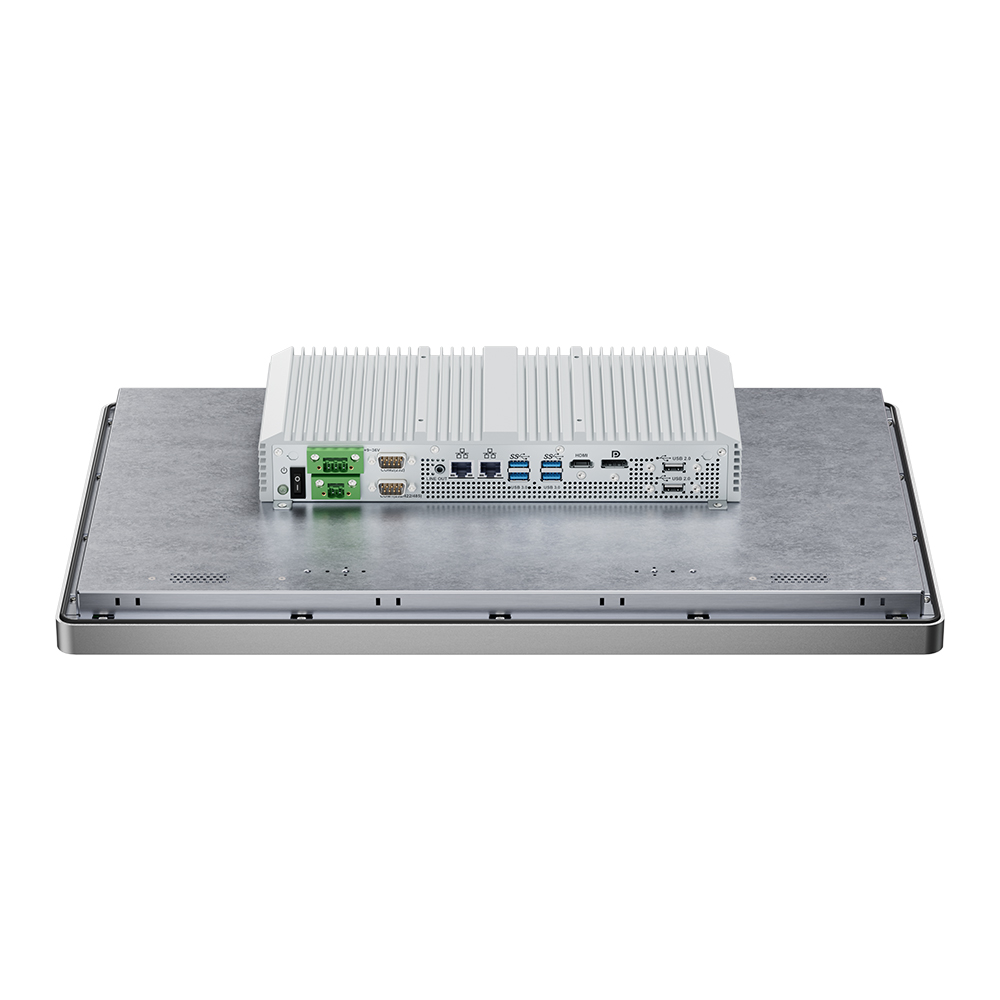

NPP-215P01-3

21.5″ Celeron Fanless Industrial Panel PC

R24,296.25

Intel® Celeron® Processor J6412 (Elkhart Lake)
2.0 GHz (up to 2.6 GHz)
21.5” Full HD 1920×1080, TFT-LCD
Projected Capacitive Touch
IP66-rated aluminum front bezel and steel chassis
GbE Ethernet ports x 2
COM port x 4 (RS-232 x 2, RS-232/422/485 x 2)
USB x 5 (3.2 Gen1 x 4, 2.0 x 1)
DC 9~36V wide range power input
Fan-less, modular detachable design
VESA mounting 100x100mm / Panel mounting

Category: Novakon

Description

Description

System

CPU: Intel® Celeron® J6412 2.0GHz, quad-core, 4 threads, (up to 2.6GHz)
System Chipset: SoC
System Memory: 2 x SO-DIMM, DDR4 3200MHz, up to 32GB

Storage

SSD: 1 x 2280 M.2 M-key (PCIe x 2, SATA 6Gb/s)

Expansion

Expansion Slot: 1 x Full-size mini PCIe

Display & Touch Screen

LCD Size: 21.5″ TFT-LCD
Luminance (cd/m2): 500 (Typ.)
Backlight Lifetime (hrs): 50000
Contrast: 1000:1 (Typ.)
Max. Colors: 16.7M
Max. Resolution: 1920×1080
Viewangle (H°/V°): 178 / 178
Touch Type: Projected Capacitive Touch
Touch Interface: USB
Light Transmission (%): Over 85%

I/O Interface

Audio: 1 x Line Out
HDMI 2.0: 2
Display Port: –
LAN (RJ45): 2 x GbE
Power: 1 x 2 pins terminal block for external power switch, 1 x 3 pins terminal block power connector, 1 x power switch on/off
Serial: 1 x DB9 (RS-232/422/485 & RI/5V/12V), 1 x DB9 (RS-232/422/485), 2 x DB9 (RS-232)
USB: 4 x USB 3.2 Gen 1, 1 x USB 2.0

Power

Power Input: DC 9~36V
Power Consumption: 90W

Environment

Operating Temp: 0~50° C (32~122° F)
Operating Humidity: 10 to 90% (non-condensing)
Storage Temp: -20~60° C (-4~140° F)
Software: iFace-Designer® Runtime, Siemens Industrial Edge Runtime, Siemens Industrial Management
Operating System: Windows 10 IoT, Debian 11
Certification: CE/FCC

Mechanical

Construction: Aluminum front bezel and steel chassis
IP Rating: Front Panel IP66
Mounting: VESA mounting 100x100mm / Panel mounting
Dimension(mm): 538(W) x 329.5(H) x 87(D)
Net Weight(Kgs): 7.2
